STAINLESS STEEL AND NICKEL ALLOY TUBES

For high quality applications

Contact Us

Our tubes

ZM Tubes mainly produces three kinds of stainless steel and nickel alloy tubes upon request

Markets

These tubes are used in a wide range of applications as heat exchangers, condensers, evaporators, feed water heaters for power plants and equipment in the food industry, as well as in the pharmaceutical, pneumatic, automotive, instrumentation, oil & gas, valves and aerospace industries.

Power plants

Pharmaceutical

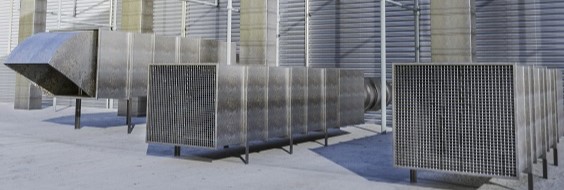

Air coolers

Food industry

Chemical & petrochemical

Instrumentation

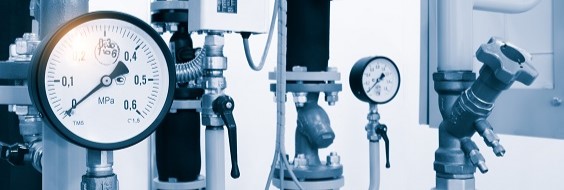

Pneumatic

Electromagnetic

Automotive

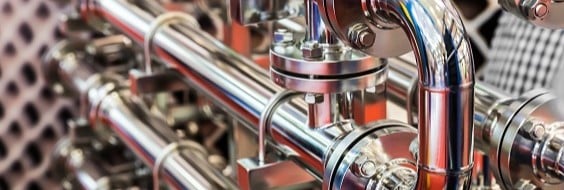

Heat exchangers

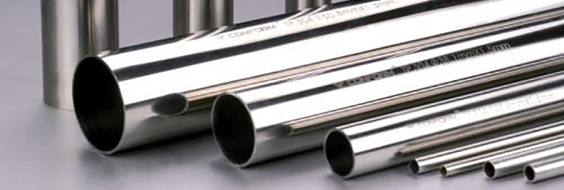

Semiconductors

High pressures

Inspection and testing

Inspection and tests are made in accordance with the execution standard.

Find out more

Stainless steel grades

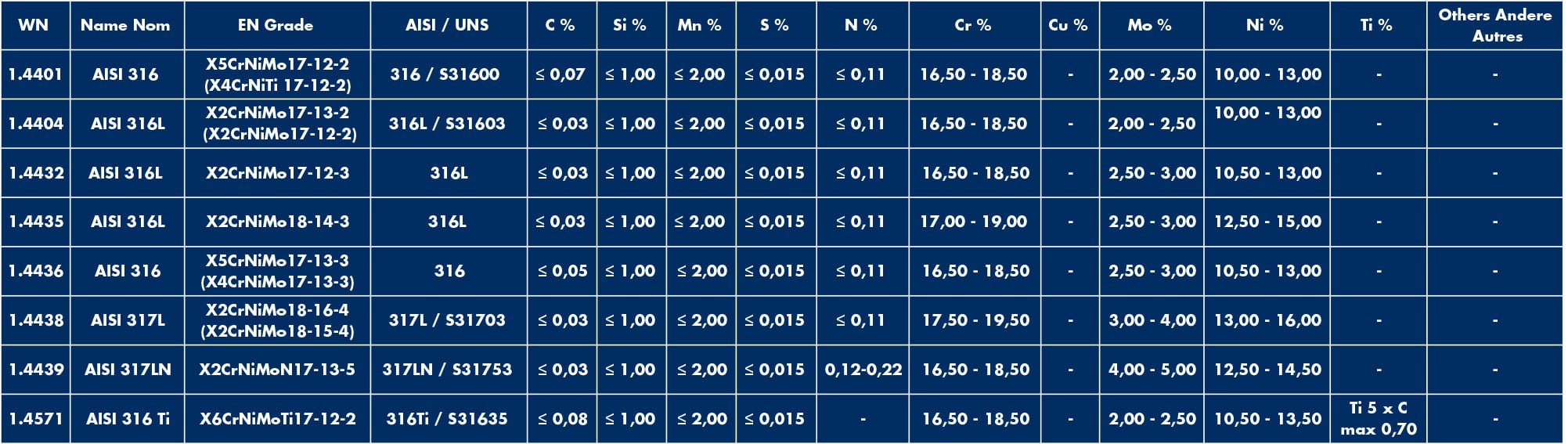

  • Austenitic

304/304L/316/316L/316SL/316TI/

321/317L/317LN

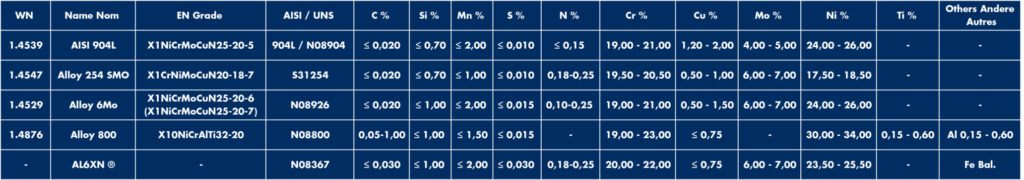

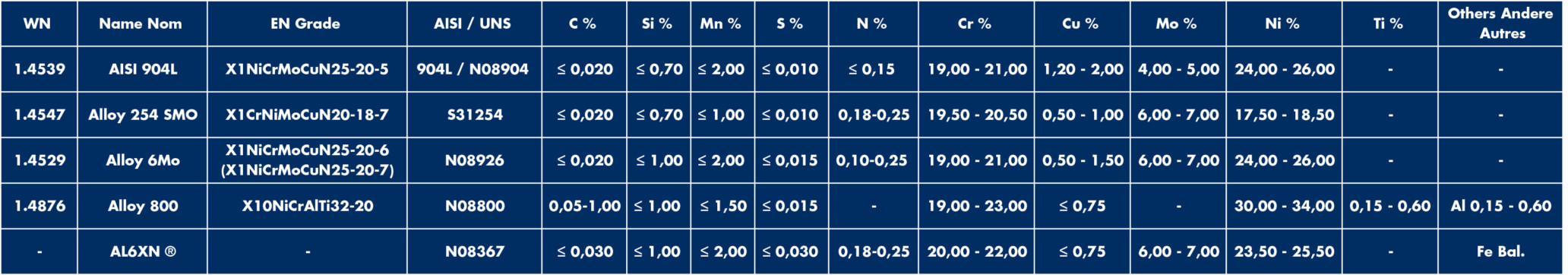

  • Super austenitic

904L/254SMO/N08926/N08800/AL6XN

  • Duplex

S32101/S32304/S32205/

S31803/S32750/S32760

  • Inconel

600/601/602/625/825

  • Ferritic

S44100/S44400/S43035

  • Heat resisting steels

310S/321H/304H

  • Incoloy + Hastelloy

on request

Main standards

  • ASTM/ASME A : 213, 249, 269, 270, 312, 688, 789, 790,1016
  • ASTM/ASME B : 626, 674, 676, 704, 751, BPE
  • DIN : 11866
  • EN : 10217/10216-5, 10305, 10357, 10893
  • CUSTOMER SPECIFICATION

Execution

  • Welded and seamless
  • Welded and seamless redrawn for high precision application
  • Seamless redrawn for high pressure application
  • Brushed, polished
  • Hard, 1/2 Hard, 1/4 Hard
  • Bright annealed
  • Annealed and pickled

Services

  • Finned tubes (lowfin, embedded, applied and foot fins)
  • Machining
  • Polished
  • Electropolishing inside
  • U-tubes

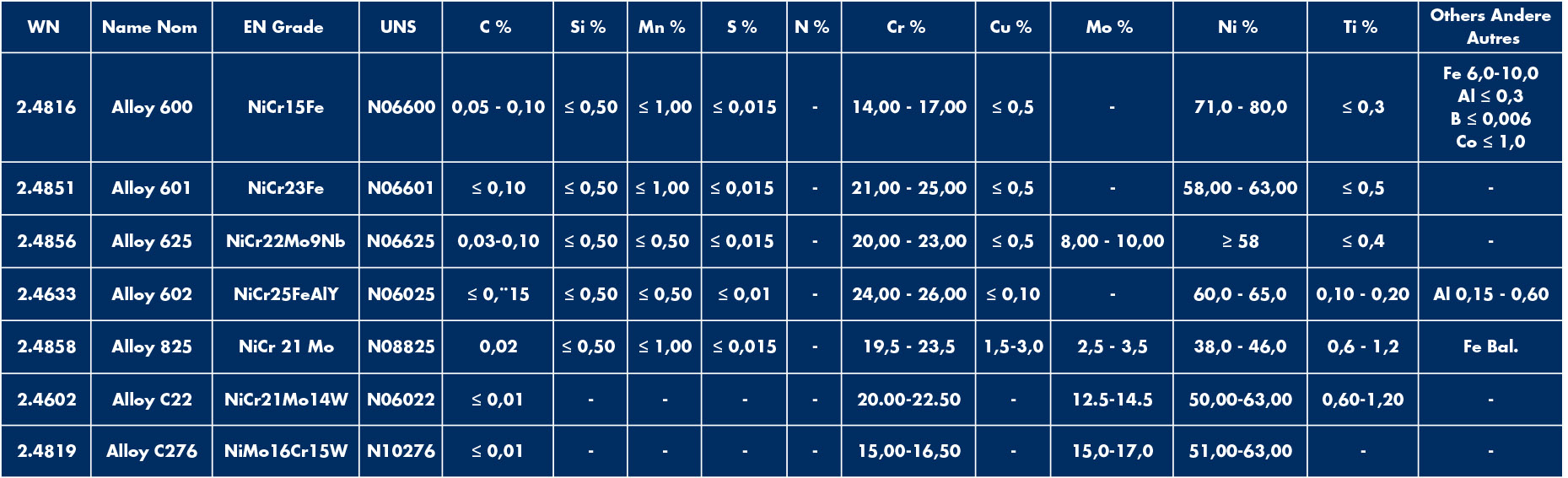

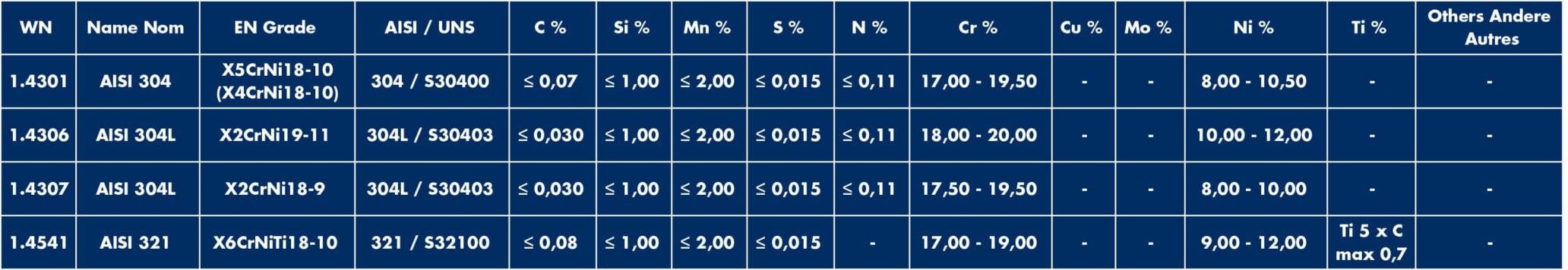

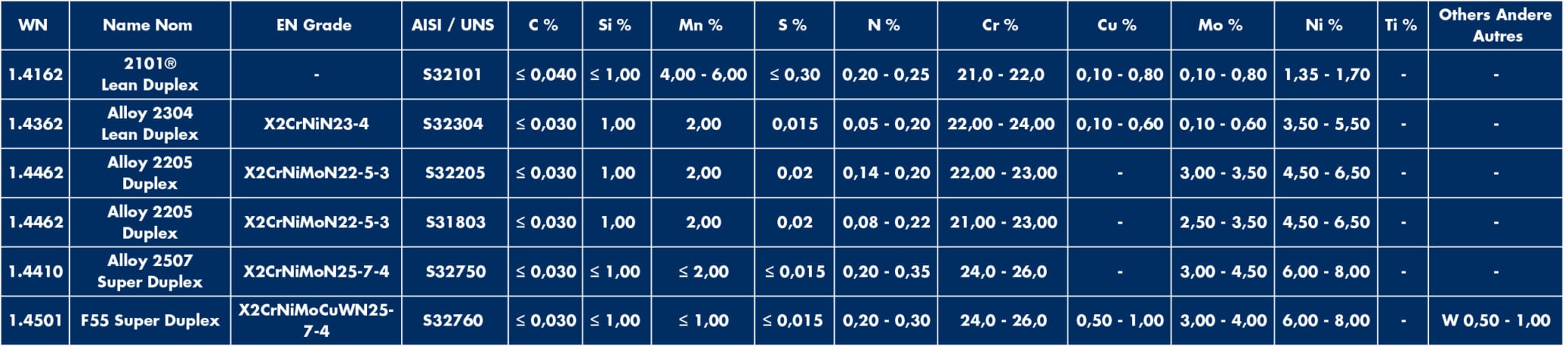

Material grades

Download Material grades

Packaging

  • Tubes are packed in bundles or in cages or wooden crates.
  • It is possible to protect them individually with plastic film also in VCI.
  • Special packaging is available on request.
